iPXE的使用介绍

IT技术 ipcpu 33887浏览

iPXE的使用介绍.md

概述

PXE是Intel提出的,用以网卡启动。通过DHCP获取IP以及TFTP获取启动文件。
gPXE/iPXE是PXE的扩展版,支持HTTP等多种获取手段。iPXE由gPXE分支而来(fork),功能更丰富。

iPXE的使用

之前我们使用PXE的时候,要在DHCP配置中设置启动文件为pxelinux.0

  1. # Subnet for new 100 subnet
  2. subnet 172.16.100.0 netmask 255.255.254.0 {
  3. range 172.16.101.230 172.16.101.240;
  4. option subnet-mask 255.255.254.0;
  5. option routers 172.16.100.1;
  6. next-server 172.16.10.31;
  7. filename "pxelinux.0";
  8. }

如果使用的是gpxe,那么这个文件名就是 gpxelinux.0
这两个文件都可以在你syslinux的安装包中找到。

iPXE就没那么好了,需要自己下载。
下载链接是 http://boot.ipxe.org/undionly.kpxe
然后设定DHCP配置文件

  1. next-server 172.16.10.31;
  2. filename "undionly.kpxe";

But… 问题来了,你会发现iPXE的启动界面是一个死循环。

如何打破这个死循环呢?

官方提供了2个办法,一个是改DHCP的配置,貌似很麻烦,我们还是采用第二种办法,重新编译。

  1. git clone git://git.ipxe.org/ipxe.git
  2. cd ipxe/src
  3. cat <<EOF >> demo.ipxe
  4. #!ipxe
  5. dhcp
  6. chain http://boot.ipcpu.com
  7. EOF
  8. make bin/undionly.kpxe EMBED=demo.ipxe

其中的chain需要填写启动网址。
生成新的undionly.kpxe,我们把它覆盖掉原先的文件。

接下来,我们就要处理启动网站了。

启动网站的处理

启动网站需要http服务器,这里我们使用了nginx。

首先我们写入首页文件index.html

  1. #!ipxe
  2. echo
  3. echo Booting boot.oskarcz.net for ${hostname}
  4. set 210:string http://boot.ipcpu.com/
  5. set 209:string pxelinux.cfg/default
  6. set 208:hex f1:00:74:7e
  7. set filename ${210:string}pxelinux.0
  8. chain ${filename} ||
  9. echo Booting ${filename} failed, dropping to shell
  10. shell
  11. #@加载http://boot.ipcpu.com/pxelinux.0文件
  12. #@加载http://boot.ipcpu.com/pxelinux.cfg/default 配置

然后这里就和普通的PXE一样了,唯一不同的是协议全部是HTTP。
配置文件pxelinux.cfg/default

  1. ######################################
  2. #使用vesamenu.c32菜单
  3. DEFAULT res/vesamenu.c32
  4. PROMPT 0
  5. MENU TITLE PXE NETBOOT TOOLKITS
  6. #背景图片
  7. MENU BACKGROUND res/back.png
  8. #字体设定
  9. FONT res/myfont.psf
  10. #超时设定
  11. TIMEOUT 300
  12. MENU VSHIFT 6
  13. #超时默认启动hardboot
  14. ONTIMEOUT hardboot
  15. #####custom6.6
  16. LABEL centos66
  17. MENU LABEL ^1 -- Custom CentOS6.6 64bit Setup
  18. linux http://boot.ipcpu.com/pxe/centos6/isolinux/vmlinuz
  19. append initrd=http://boot.ipcpu.com/pxe/centos6/isolinux/initrd.img ks=http://boot.ipcpu.com/secret/ks/centos66.cfg ksdevice=bootif ip=172.1.30.250 netmask=255.255.0.0 gateway=172.1.1.1 dns=172.1.10.1,172.1.10.2 hostname=IPCPU-30-250
  20. ######boot from harddisk
  21. LABEL hardboot
  22. MENU LABEL ^H -- Boot from the first Hard Disk
  23. kernel res/chain.c32 hd0

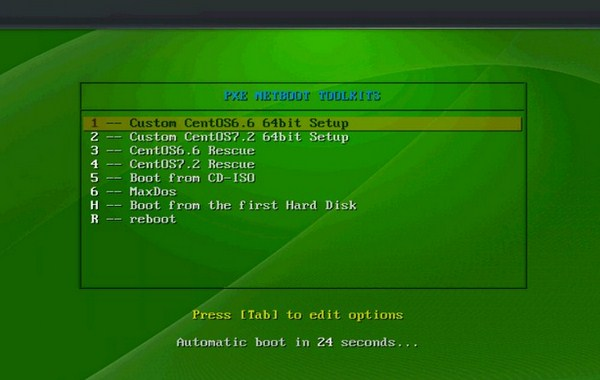

界面截图

QA

QA-1

Q:如何实现公网上的安装服务?
A:我们看到iPXE配置里写的是一个网址,将网站发布出去就可以利用公网安装了。http://boot.oskarcz.net/ 以及 https://netboot.xyz/boot-ipxe/index.html 就是这样一种服务

QA-2

Q:如何使用公网上的安装服务
A:在iPXE启动界面中按下Ctrl+B,中断默认启动方式,然后输入以下内容,即可使用。

  1. iPXE> dhcp
  2. iPXE> chain http://boot.oskarcz.net

QA-3

Q:如何实现http://boot.oskarcz.net/这种方式呢,浏览器访问时显示帮助文件。
A:这里是采用nginx对UserAgent进行判断,UA为iPXE时,根目录是脚本目录,其他UA时,根目录是帮助文件。

QA-4

Q:gPXE有什么缺点呢?
A:gPXE已经停止开发,没有技术支持了,并且在实际使用中,发现VMWARE ESXi使用gpxe后,下载配置文件特别慢,无法忍受。

参考资料

http://ipxe.org/howto/chainloading
http://boot.oskarcz.net/

转载请注明:IPCPU-网络之路 » iPXE的使用介绍
